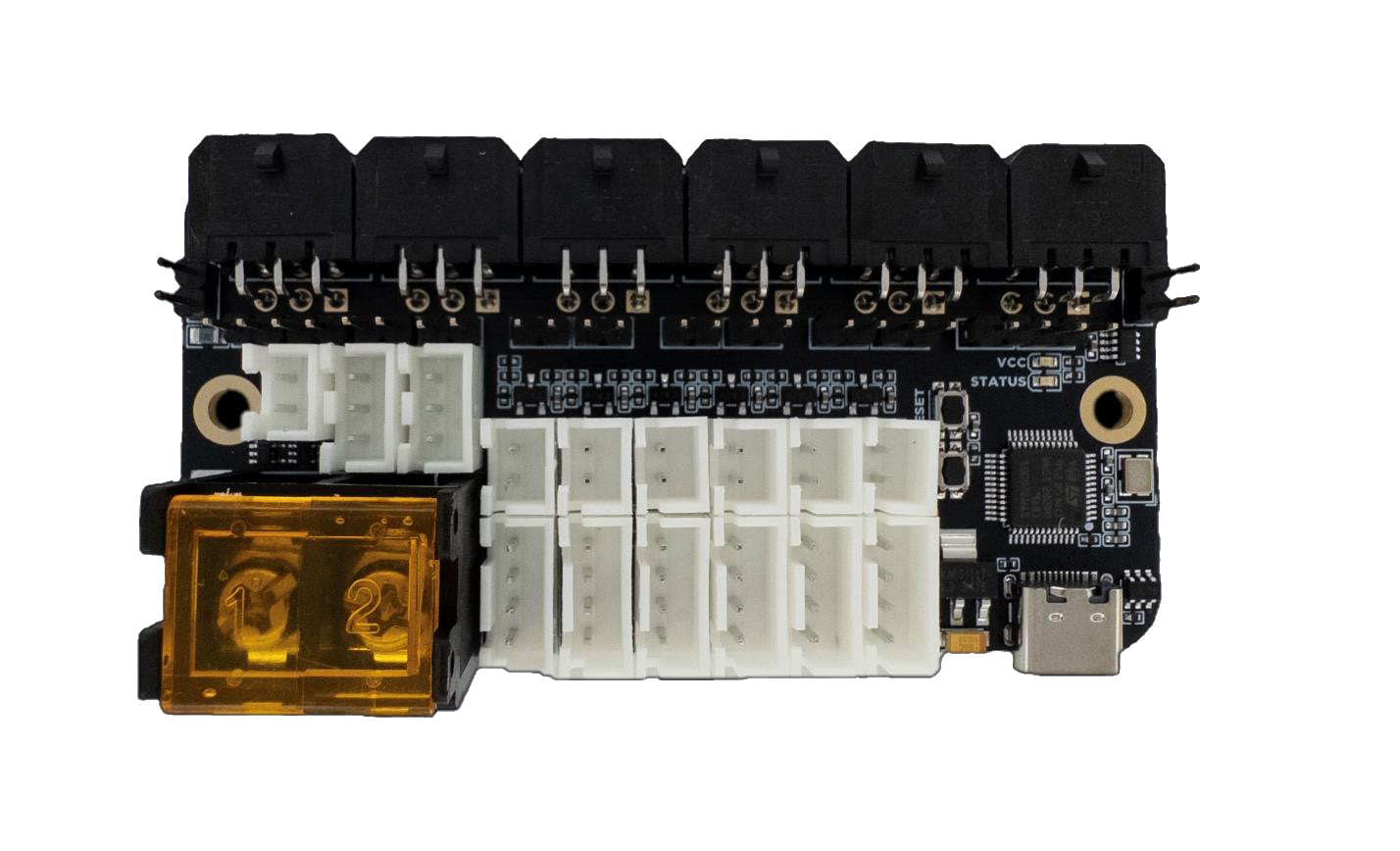

Connectors
VIN Connector1.27mm Header · 2p
CAN PinoutsMicro-Fit · 6p
CAN Port Jumpers2.54mm Header · 2p
CAN Termination 12.54mm Header · 2p
CAN Termination 22.54mm Header · 2p
CAN ExpansionJST-XH · 2p
Thermistor 1JST-XH · 2p
Thermistor 2JST-XH · 2p
Thermistor 3JST-XH · 2p
Thermistor 4JST-XH · 2p
Thermistor 5JST-XH · 2p
Thermistor 6JST-XH · 2p
Filament Sensors 1JST-XH · 4p
Filament Sensors 2JST-XH · 4p
Filament Sensors 3JST-XH · 4p
Filament Sensors 4JST-XH · 4p
Filament Sensors 5JST-XH · 4p
Filament Sensors 6JST-XH · 4p
ARGB LEDs 1JST-XH · 3p
ARGB LEDs 2JST-XH · 3p
Boot ButtonButton · 1p
Reset ButtonButton · 1p
USB C InUSB-C · 0p
