Stealthmax PCB 3 Pinout

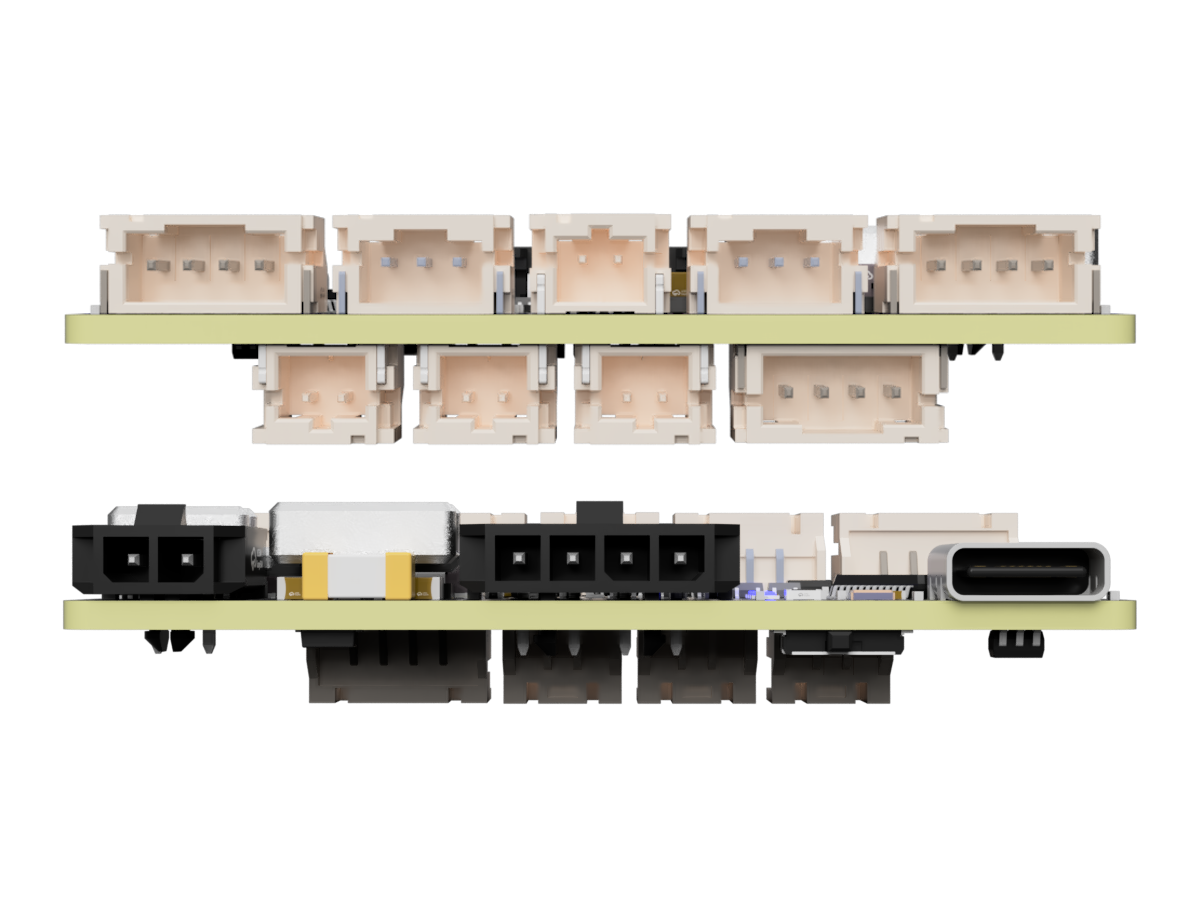

Click or tap a connector to see its pinout · Created with PinConnect
Connectors
Sensors 2JST-PH · 4p
RGB LEDsJST-PH · 3p
UV LEDsJST-PH · 2p
ServoJST-PH · 3p
Sensors 1JST-PH · 4p
Thermistor 1JST-PH · 2p
Thermistor 2JST-PH · 2p
Thermistor 3JST-PH · 2p
FanJST-PH · 4p
PeltierMicro-Fit · 2p
Power & CANMicro-Fit · 4p
USB CUSB-C · 0p
